Our Services

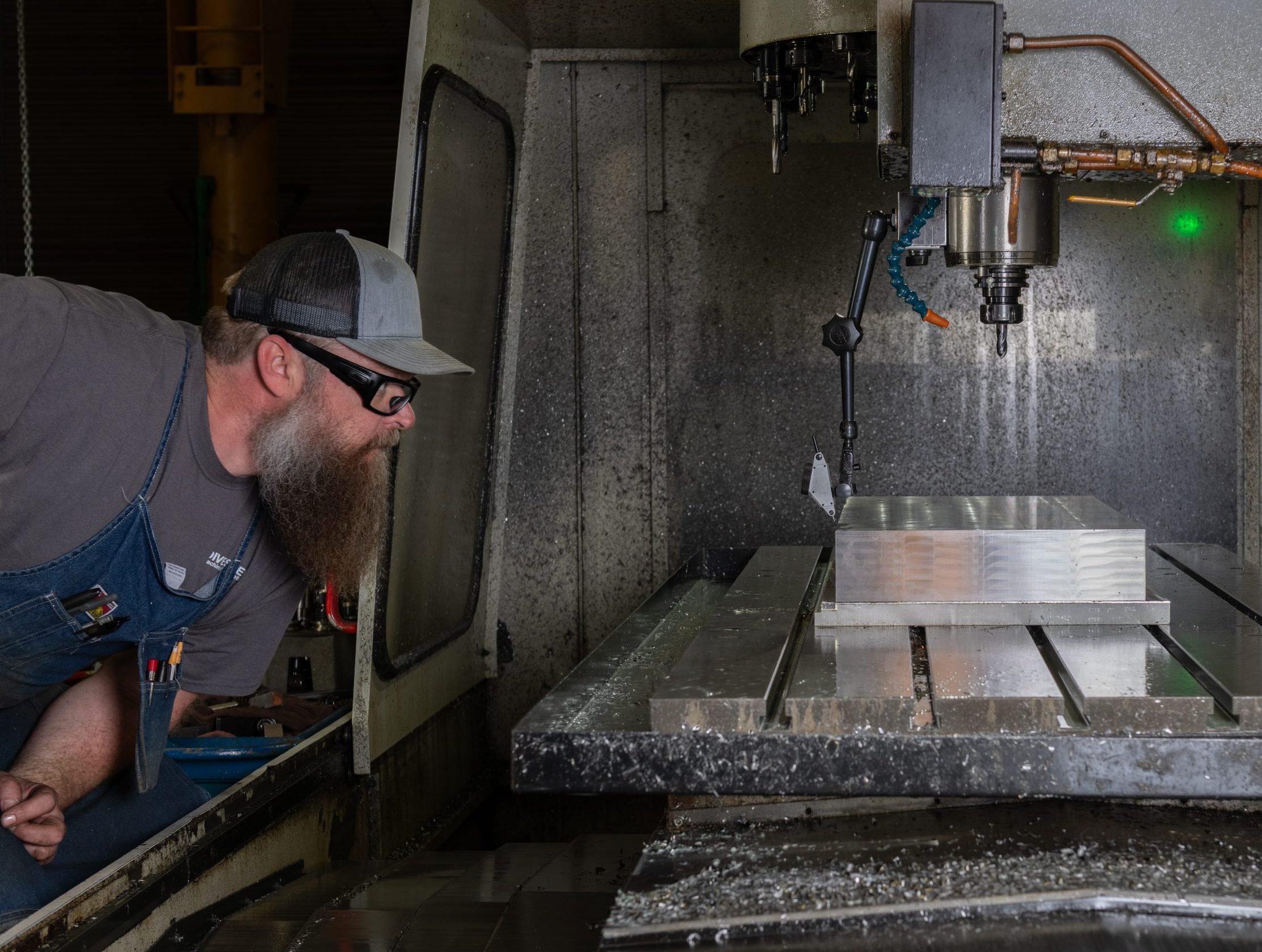

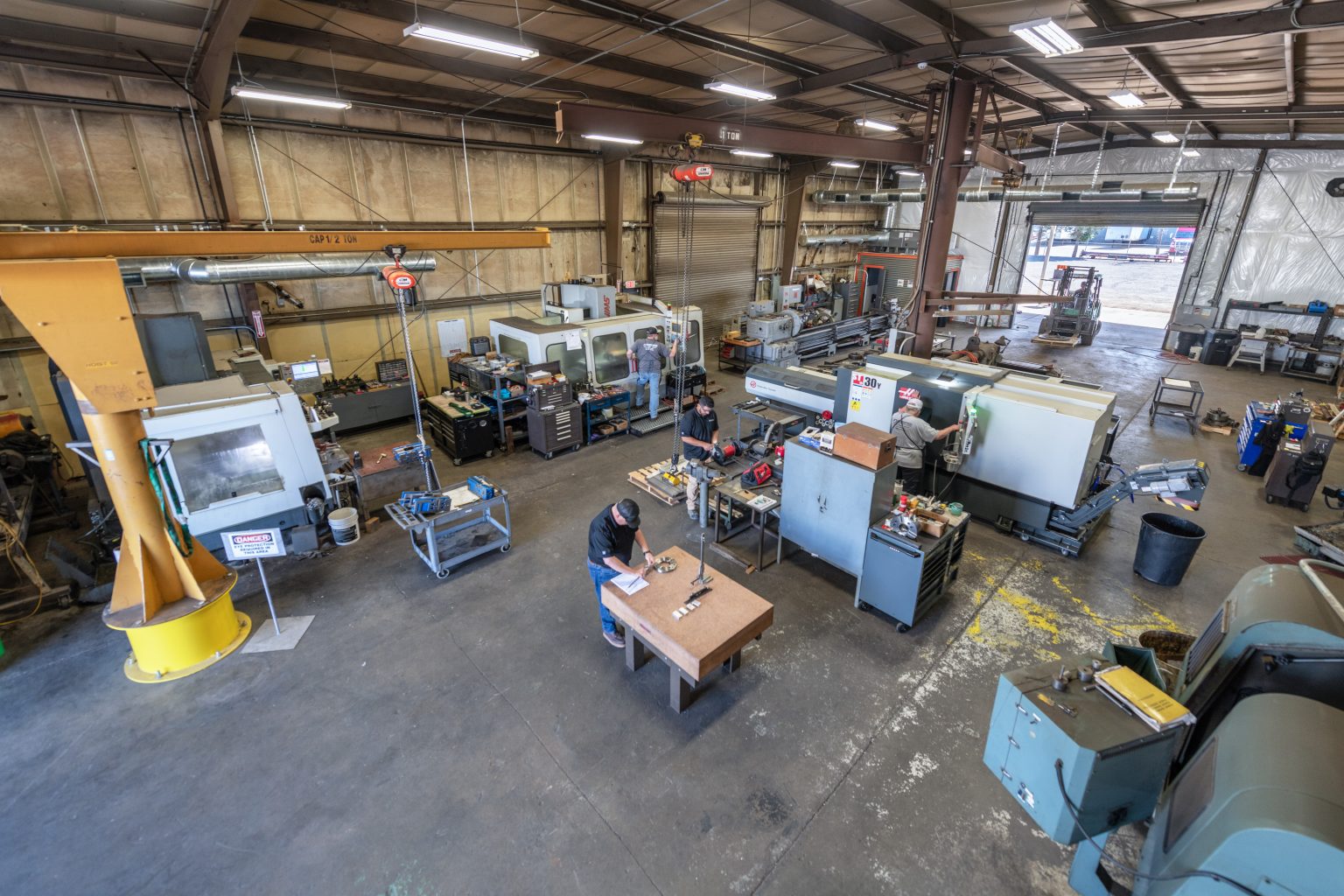

Our machining department is equipped to handle everything from intricate small parts to oversized OD components. With advanced CNC mills, lathes, and vertical turning lathes, we maintain tight tolerances while meeting demanding production schedules. Whether it’s a one-off prototype or a full production run, our focus is on accuracy, consistency, and quality.
Hardened Steels, Nickel, Bronze, Stainless Steel, Cobalt, Plastics, Super Alloys, Copper, Titanium, Aluminum. (all materials not applicable to every process)

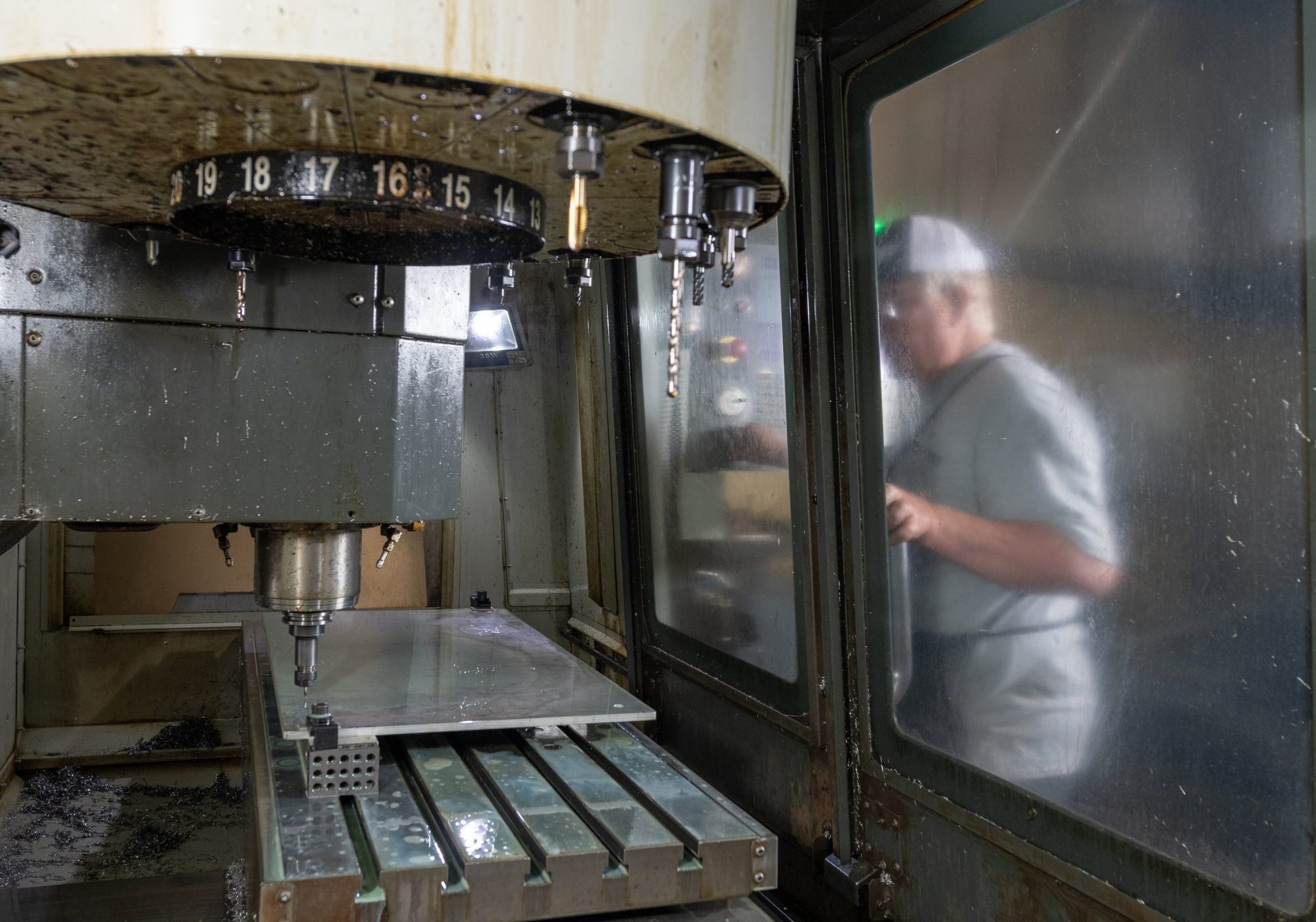

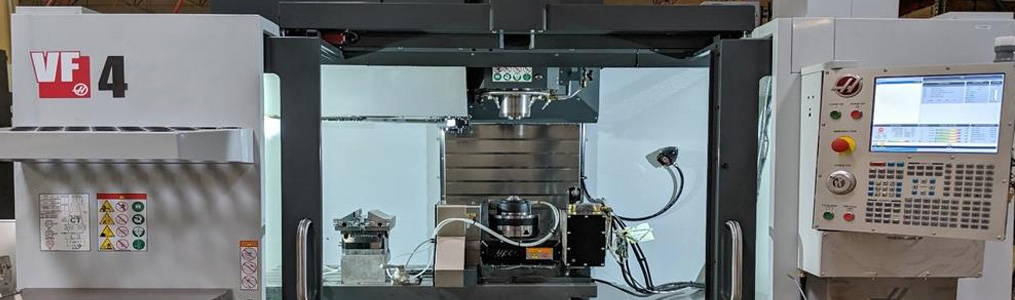

HAAS VF-4 CNC Vertical Mill Specifications:
| Travels | S.A.E |
| X Axis | 50″ |
| Y Axis | 20″ |
| Z Axis | 25″ |
| Spindle Nose to Table (~ Max) | 29.2″ |
| Spindle Nose to Table (~ Min) | 4.2″ |
| Spindle | S.A.E |
| Max Rating | 30 HP |
| Max Torque | 90 ft-lbf @ 2000 RPM |
| Max Torque w/opt Gearbox | 250 ft-lbf @ 450 RPM |
| Drive System | Inline Direct-Drive |
| Table | S.A.E |
| Length | 52″ |
| Width | 18″ |
| T-Slot Width | 0.626″ in to 0.630″ |
| T-Slot Center Distance | 3.15″ |
| Number of Std T-Slots | 5 |
| Max Weight on Table (Evenly Distributed) | 3500 LB |
| Feedrates | S.A.E |
| Max Cutting | 650 IPM |
| Rapids on X | 1000 IPM |
| Rapids on Y | 1000 IPM |
| Rapids on Z | 1000 IPM |

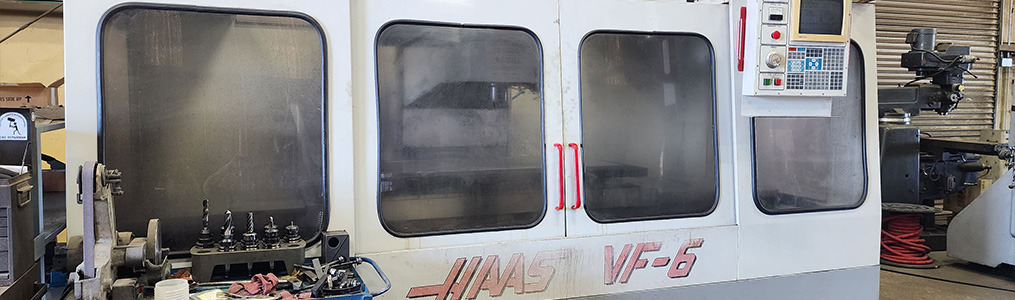

HAAS VF-6 CNC Vertical Mill Specifications:
| Travels | S.A.E |
| X Axis | 64″ |
| Y Axis | 32″ |
| Z Axis | 30″ |
| Spindle Nose to Table (~ Max) | 34″ |
| Spindle Nose to Table (~ Min) | 4.0″ |
| Spindle | S.A.E |
| Max Rating | 30 HP |
| Max Speed | 8100 RPM |
| Max Torque | 90 ft-lbf @ 2000 RPM |
| Max Torque w/opt Gearbox | 250 ft-lbf @ 450 RPM |
| Drive System | Inline Direct-Drive |
| Table | S.A.E |
| Length | 64″ |
| Width | 28″ |
| T-Slot Width | 0.626″ in to 0.630″ |
| T-Slot Center Distance | 4.92″ |
| Number of Std T-Slots | 5 |
| Max Weight on Table (Evenly Distributed) | 4000 LB |
| Feedrates | S.A.E |
| Max Cutting | 500 IPM |
| Rapids on X | 600 IPM |
| Rapids on Y | 600 IPM |
| Rapids on Z | 600 IPM |

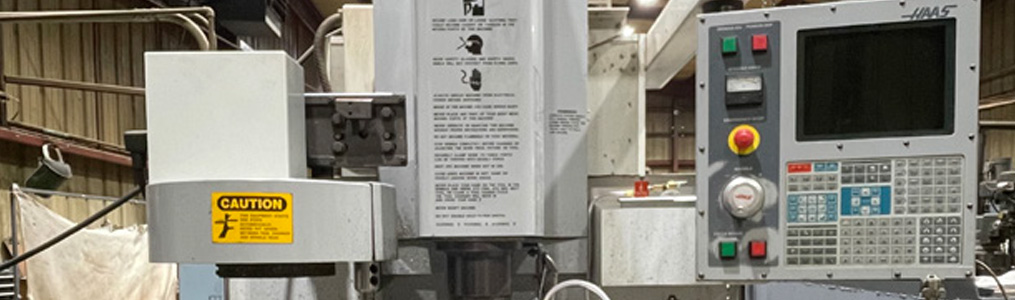

HAAS Tool Room Mil TM-1 Specifications:
| Travels | S.A.E |
| X Axis | 30″ |
| Y Axis | 16″ |
| Z Axis | 16″ |
| Spindle Nose to Table (~ Max) | 20″ |
| Spindle Nose to Table (~ Min) | 4.0″ |
| Spindle | S.A.E |
| Max Rating | 7.5 HP |
| Max Speed | 4000 RPM |
| Max Torque | 33 ft-lbf @ 1200 RPM |
| Drive System | Direct Speed, Belt Drive |
| Table | S.A.E |
| Length | 47.8″ |
| Width | 10.5″ |
| T-Slot Width | 0.626″ in to 0.630″ |
| T-Slot Center Distance | 4″ |
| Number of Std T-Slots | 3 |
| Max Weight on Table (Evenly Distributed) | 350 LB |
| Feedrates | S.A.E |
| Max Cutting | 200 IPM |
| Rapids on X | 200 IPM |
| Rapids on Y | 200 IPM |
| Rapids on Z | 200 IPM |

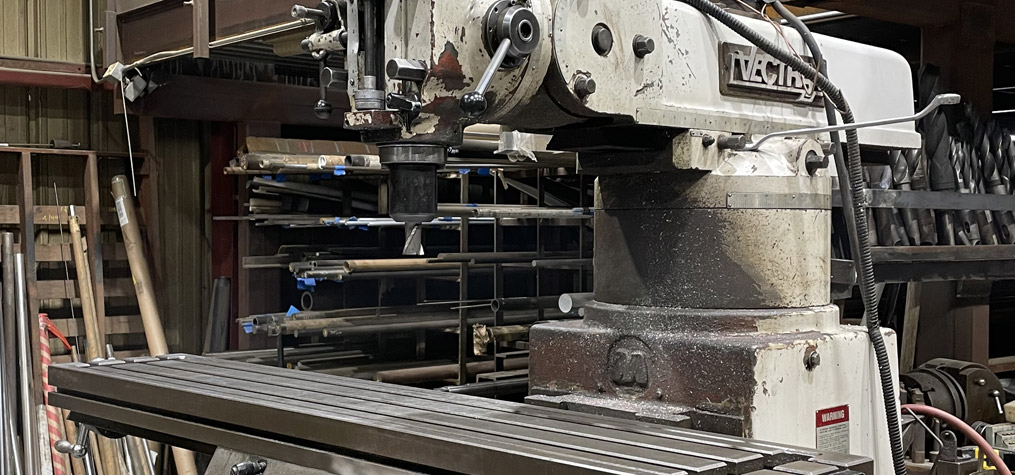

Vectrax GS20V 3 Axis CNC Mill Specifications:
| Controller | Centroid MSC M-15 |
| Table Size | 10″ x 54″ |
| X-Axis Table Travel | 32″ |
| Y-Axis Table Travel | 16.5″ |
| Knee Travel | 19″ |
| Ram Travel | 18″ |
| Quill Travel | 5″ |
| Spindle Type | R-8 |
| Spindle Speeds | 70-3600 RPM |

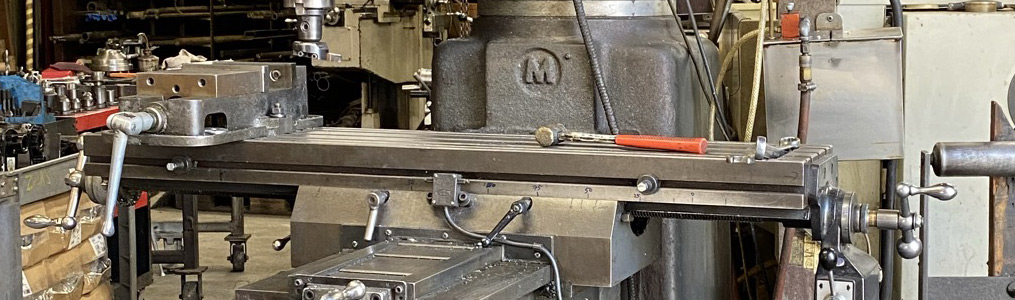

Kent KTM-5VK Milling Machine Specifications:
| Table Travel (X Axis) | 36″ |
| Saddle Travel (Y Axis) | 16″ |
| Quill Travel | 5″ |
| Knee Travel | 16″ |
| Ram Travel | 24″ |
| Throat Distance Min | 1-1/4″ |
| Throat Distance Max | 28-1/4″ |
| Table to Spindle Nose Gage Line Min | 2-1/2″ |
| Max Weight of Work Piece | 850 LBS |

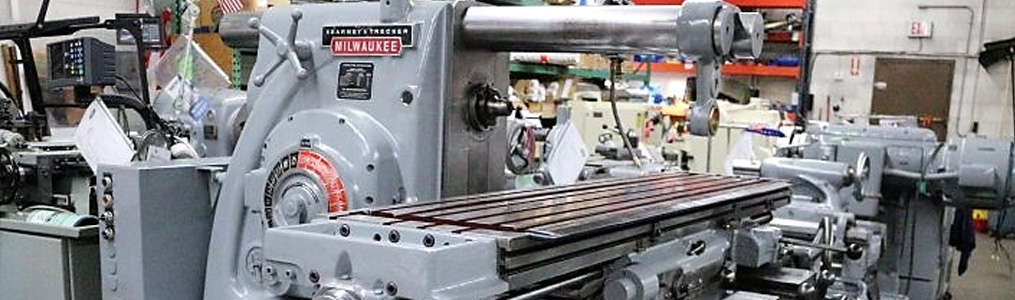

Kearney & Trecker Milwaukee Model K Universal Horizontal Milling Machine Specifications:
| Long Travel | 42.00 in 1066.80 mm |
| Table Width | 18.00 in 457.20 mm |
| Table Power | 30.00 hp 22.37 kW |
| Table Length | 90.00 in 2286.00 mm |
| Spindle Power | 25.00 hp 18.64 kW |
| Spindle Speed | 13 – 1300 RPM |
| Spindle Taper | 50 NST |
| Spindle Travel | 9.00 in 228.60 mm |
| X-Axis Cross Travel | 16.00 in 406.40 mm |
| Y-Axis Vertical Travel | 22.50 in 571.50 mm |

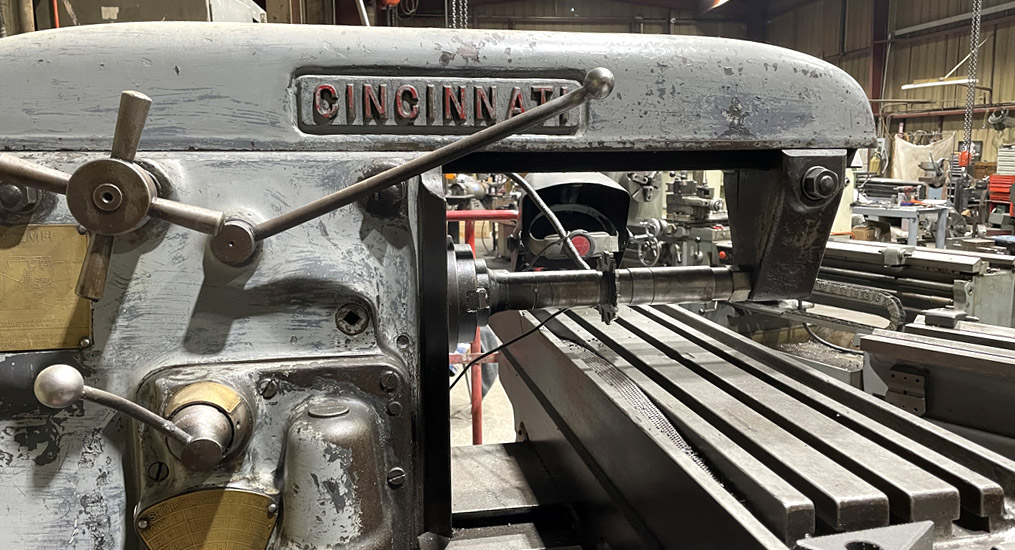

Cincinnati Milacron Horizontal Mill No. 2MH Specifications:
| Length of Bed | 53″ |
| Axis Dimensions Approx. | Y-45″ Z- 24″ X- 52″ |
| Machine Dims | 63″ Tall 68″ Long 26″ Wide Base |
| Motor | 60 Amp 250 Volt / 3 Phase |
| Standard | 7.5 HP |
| Maximum | 15 HP |
Lion Engine Lathe Specifications:
| Swing Over Bed | 16″ |
| Swing Over Cross Slide | 9 7/8″ |
| Swing in Gap | 22″ |
| Length in Gap from 4 Jaw Chuck | 7″ |
| Distance Between Centers | 44″ |
| Spindle Nose | D1-6 |
| Spindle Bore | 2 3/32″ |
| Spindle Bearings | SKF |
| Range of Speeds | 54-2400 Rpm |
| Number of Threads | 34 |
| Range of Inch Threads | 60-4 Tpi |
| Range of Metric Threads | 7.5-0.5 |
| Number of Feeds | 32 |
| Range of Longitudinal Feeds | .0038-.0536″ |
| Range of Cross Feeds | .0019-.0268″ |
| Lead Screw Diameter | 1 1/4″ |
| Lead Screw Pitch | 4 TPI |
| Max. Traverse of Cross Slide | 9 5/8″ |
| Max. Traverse of Top Slide | 5″ |
| Taper Turning Work Length | 15 3/4″ |
| Maximum Taper | +/- 10 dg. |
| Tailstock Quill Diameter | 2 3/8″ |
| Tailstock Quill Taper Bore | 4 MT |
| Maximum Quill Stroke | 5 7/8″ |
| Width of Bed | 12 1/2″ |
| Ways | Hardened and Ground |

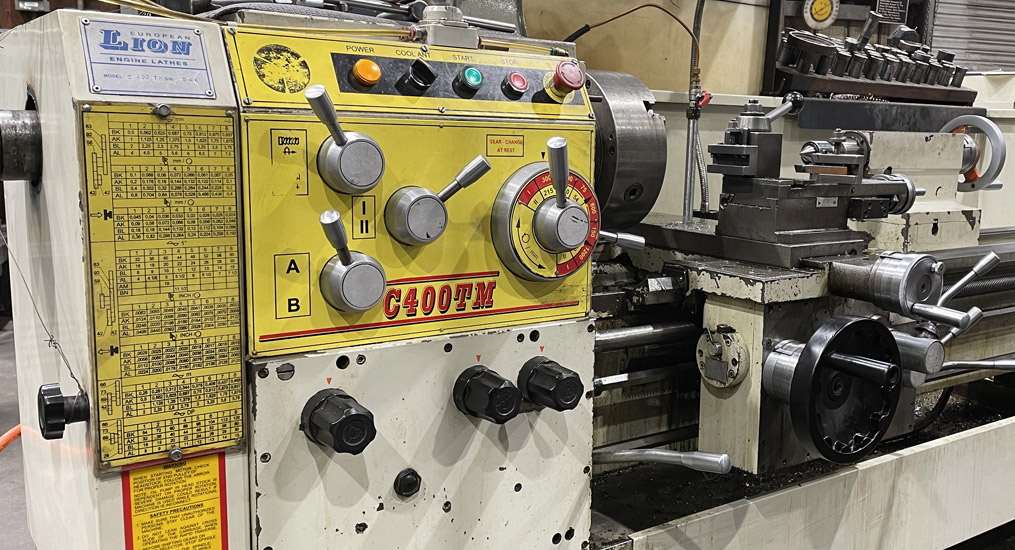

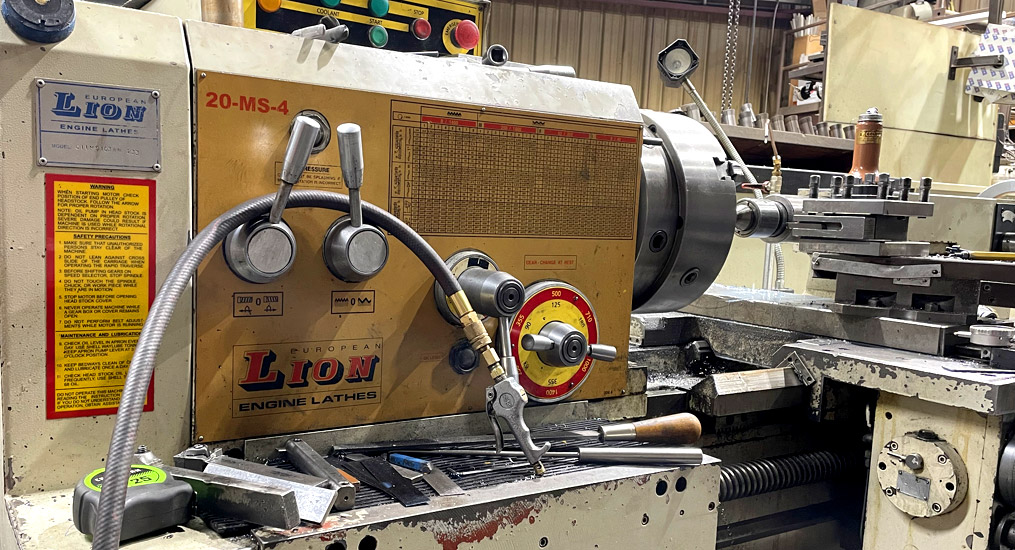

Lion Gap Bed Engine Specifications:
| Swing Over Bed | 20″ |
| Swing Over Cross Slide | 11-1/2″ |
| Swing in Gap | 26″ |
| Length in Gap from Face Plate | 9″ |
| Distance Between Centers | 60″ |
| Spindle Nose | D1-11 Camlock |
| Spindle Bore | 4-1/16″ |
| (18) Spindle Speeds | 8 to 1400 Rpm |
| Inch Threads | 4 to 120 TPI |
| Metric Threads | .5 to 7.5 |
| Longitudinal Feeds | .0019 to .9048 |
| Cross Feeds | .0007 to .4524 |
| Rapid Traverse | 148 IPM |
| Traverse of Cross Slide | 14″ |
| Traverse of Compound | 5-11/16″ |
| Taper Turning Length | 15-3/4″ |
| Maximum Taper | +/- 10 Degrees |
| Tailstock Diameter | 2-3/4″ |
| Tailstock Taper | #5 Morse |
| Quill Stroke | 8″ |

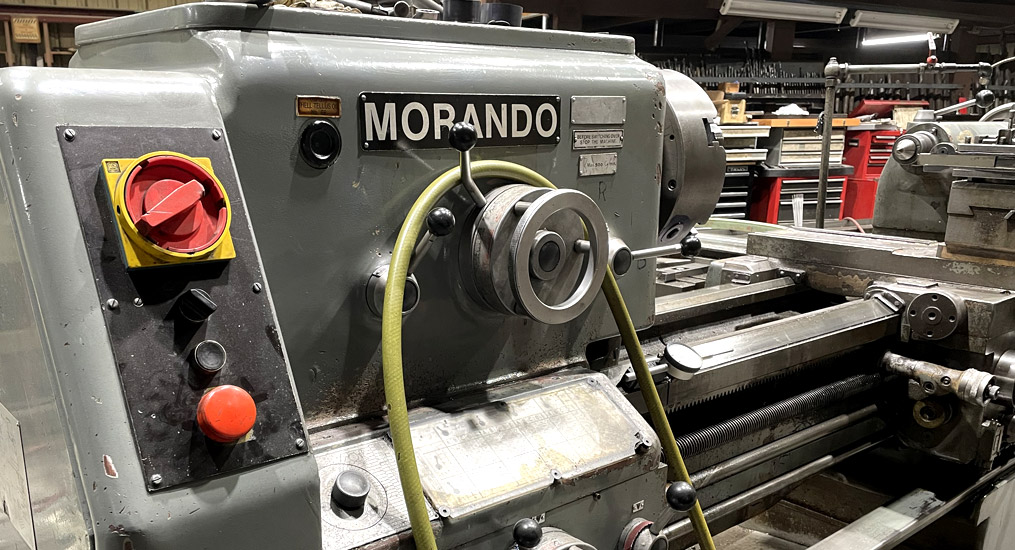

Morando PA-24 Engine Lathe Specifications:
| Swing Over Bed | 24″ |
| Swing Over Cross Slide | 16″ |
| Swing in Gap | 32″ |
| Length of gap (in front of faceplate) | 10-1/4″ |
| Width of Bed | 15-3/4″ |
| Headstock | |
| Spindle speeds (number) | 24 |
| Spindle speeds (range) | 20-2000 Rpm |
| Hole through spindle | 3-1/2″ |
| Quick Change Gearbox | |
| Threads per inch (number) | 48 |
| Threads per inch (range) | 9/16-128 |
| Metric threads per inch (number) | 48 |
| Metric threads per inch (range) | .28-64 |
| Longitudal feeds (number) | 48 |
| Longitudal feeds (range) | .0014-.3398 |
| Cross feeds (number) | 48 |
| Cross feeds (range) | .0009-.2170 |

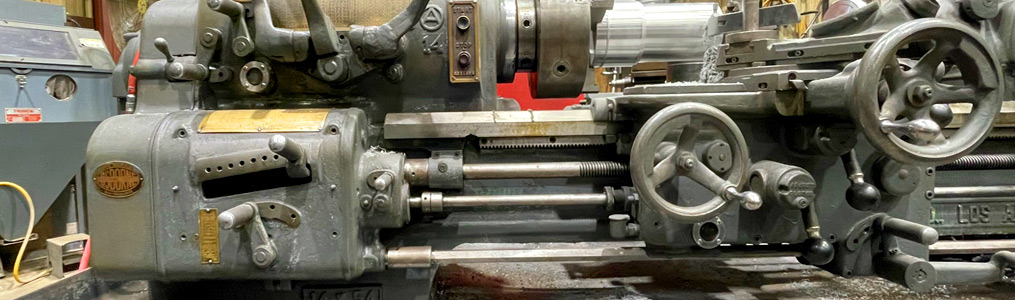

Axelson Heavy Duty Lathe Model 16 Specifications:
| Swing Over Bed | 18.5″ |
| Swing Over Slide | 10.75″ |
| Max Center Distance | 102″ |
| Spindle Nose | D1-6″ |
| Spindle Bore | 1-9/16″ |
| Spindle Speeds | (24) 13 to 1577 RPM |
| Tailstock Taper | #4 |
| Width of Bed | 17″ |
| Threads | (54) 1.5 to 92 TPI |
| Feed | (54) .0027 to 1.655 IPR |

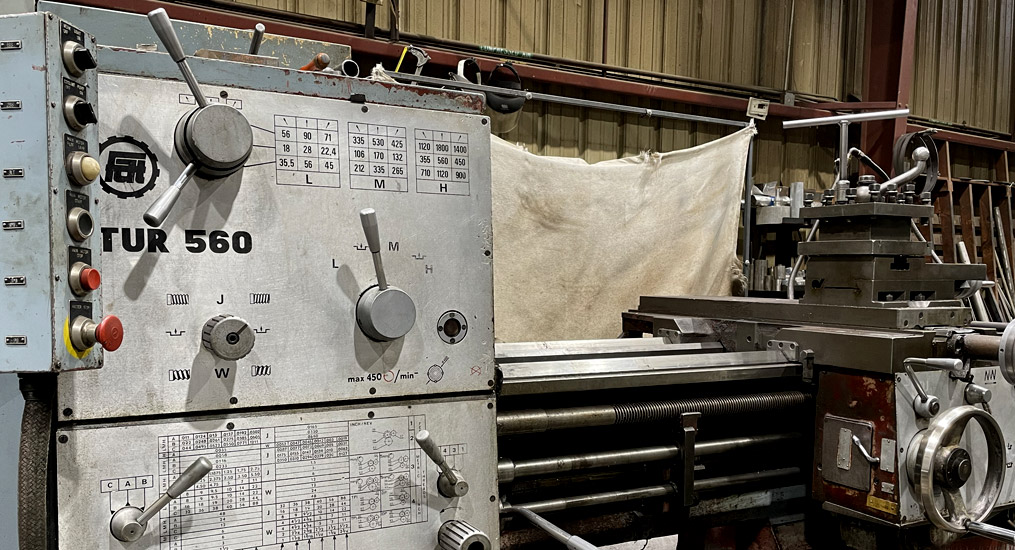

Fabryka Automatow Tokarskich Engine Lathe TUR 560 Specifications:
| Maximum Swing Over Bed | 560 MM |
| Maximum Swing Over Saddle | 320 MM |
| Maximum Turning Length Between Centers | 2000 MM |
| Bed Width | 433 MM |
COMING SOON – SUMMER 2024!
1943 Betts 14′ Heavy Duty Vertical Boring and Turning Mill Specifications:
| Cutting Diameter | 13.75″ |
| Bar Capacity | 3″ |
| Cutting Length | 32.5″ |
Equipped with:
Dual Rams
Dual Pendants
Variable Speed with Forward and Reverse Settings
16’ Diameter x 8’ Working Height
3’ x 4’ x 7’ working height
Explore our project gallery to see the results we’ve delivered for our customers.
